Name: Gigabyte X670 GAMING X AX V2 Motherboard -
Price: 42800.00 NPR
Availability: InStock

Description

Table of Contents

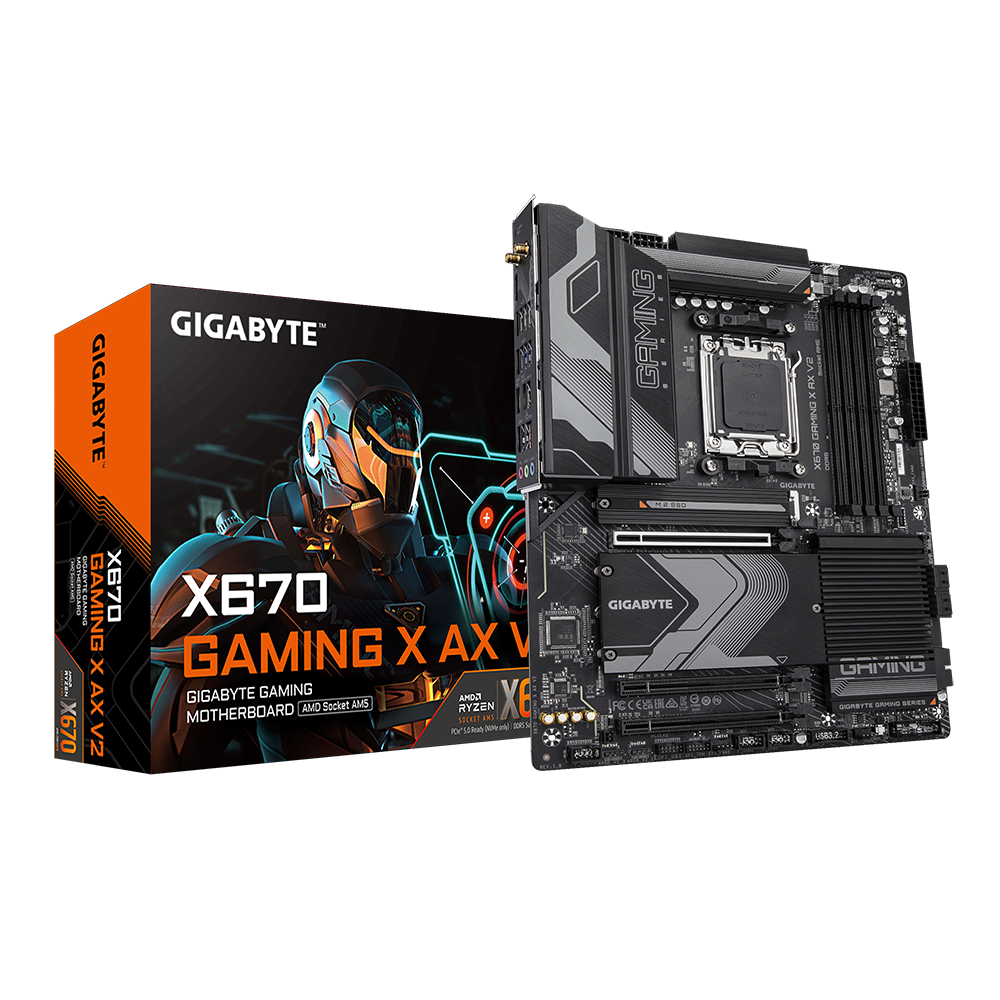

Gigabyte X670 GAMING X AX V2 Motherboard

The Gigabyte X670 GAMING X AX V2 motherboard is designed for gamers and PC enthusiasts seeking the latest in high-performance technology. It supports AMD’s Ryzen 7000 series processors, leveraging the new AM5 socket for exceptional CPU performance and scalability. With robust power delivery, cutting-edge DDR5 support, PCIe 5.0 compatibility, integrated Wi-Fi 6E, and premium audio solutions, this motherboard sets a high benchmark for gaming and productivity systems.

Key Features and Benefits of Gigabyte X670 GAMING X AX V2 Motherboard

High-Performance AM5 Platform

Supports AMD Ryzen 7000 series CPUs with Zen 4 cores for unparalleled gaming and productivity performance.
Future-proof design with PCIe 5.0 compatibility for next-gen GPUs and SSDs.

Next-Gen DDR5 Memory

Enhanced bandwidth and speeds compared to DDR4, with support for up to 128GB of memory for multitasking and high workloads.
AMD EXPO profiles simplify memory overclocking for performance boosts.

Ultra-Fast Connectivity

Wi-Fi 6E delivers high-speed wireless connectivity, ideal for gaming and streaming.
Realtek 2.5GbE Ethernet ensures stable and fast wired connections.

Extensive Storage Options

Quad M.2 slots with PCIe 5.0/4.0 enable lightning-fast storage solutions, supporting both gamers and content creators.
SATA RAID support offers flexibility for legacy storage setups.

Robust Build Quality and Cooling

16+2+2 VRM power phases ensure stable power delivery, even under heavy CPU loads or overclocking scenarios.
Multiple hybrid fan headers and Smart Fan 6 provide optimal thermal management.

User-Friendly Features of Gigabyte X670 GAMING X AX V2 Motherboard

BIOS Flashback allows updates without a CPU, ensuring an easy upgrade path.
RGB Fusion 2.0 and addressable headers enable full customization of lighting for a personalized build.

Specifications of Gigabyte X670 GAMING X AX V2 Motherboard

CPU
1. AMD Socket AM5, support for: AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors
(Please refer “CPU Support List” for more information.)
Chipset
1. AMD X670
Memory
1. Support for DDR5 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/6200(OC)/6000(OC)/5600(OC)/5200/4800/4400 MT/s memory modules
2. 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
3. Dual channel memory architecture
4. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
5. Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” for more information.)
Onboard Graphics
Integrated Graphics Processor:
1. 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
  * Support for HDMI 2.1 version and HDCP 2.3.
  ** Support native HDMI 2.1 TMDS compatible ports.
(Graphics specifications may vary depending on CPU support.)
Audio
1. Realtek^® Audio CODEC
2. High Definition Audio
3. 2/4/5.1/7.1-channel
  * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
LAN
1. Realtek^® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module
Realtek^® Wi-Fi 6E RTL8852CE
1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
2. BLUETOOTH 5.3
3. Support for 11ax 160MHz wireless standard
(Actual data rate may vary depending on environment and equipment.)
Expansion Slots
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
1. AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 4.0 x16 mode
2. AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
3. AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
  * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
1. 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)
2. 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2)
Storage Interface
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
1. AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 5.0 x4/x2 SSDs
2. AMD Ryzen™ 8000 Series-Phoenix 1/Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:
1. AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 4.0 x4/x2 SSDs
2. AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
3. AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs
Chipset:
1. 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2C_SB, M2D_SB)
2. 4 x SATA 6Gb/s connectors
RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID 10 support for SATA storage devices
USB
CPU:
1. 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
2. 2 x USB 3.2 Gen 1 ports on the back panel
CPU + USB 2.0 Hub:
1. 4 x USB 2.0/1.1 ports on the back panel
Chipset:
1. 2 x USB Type-C^® ports, with USB 3.2 Gen 2×2 support (1 port on the back panel, 1 port available through the internal USB header)
2. 8 x USB 3.2 Gen 1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
3. 4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors
1. 1 x 24-pin ATX main power connector
2. 2 x 8-pin ATX 12V power connectors
3. 1 x CPU fan header
4. 1 x CPU fan/water cooling pump header
5. 3 x system fan headers
6. 3 x addressable RGB Gen2 LED strip headers
7. 1 x RGB LED strip header
8. 4 x SATA 6Gb/s connectors
9. 4 x M.2 Socket 3 connectors
10. 1 x front panel header
11. 1 x front panel audio header
12. 1 x USB Type-C^® header, with USB 3.2 Gen 2×2 support
13. 2 x USB 3.2 Gen 1 headers
14. 2 x USB 2.0/1.1 headers
15. 1 x THB_U4 add-in card connector
16. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only)
17. 1 x power button
18. 1 x reset button
19. 1 x Clear CMOS button
20. 1 x reset jumper
21. 1 x Clear CMOS jumper
Back Panel Connectors
1. 1 x Q-Flash Plus button
2. 2 x SMA antenna connectors (2T2R)
3. 1 x HDMI port
4. 6 x USB 3.2 Gen 1 ports
5. 4 x USB 2.0/1.1 ports
6. 2 x USB 3.2 Gen 2 Type-A ports (red)
7. 1 x USB Type-C^® port, with USB 3.2 Gen 2×2 support
8. 1 x RJ-45 port
9. 3 x audio jacks
I/O Controller
1. iTE^® I/O Controller Chip
H/W Monitoring
1. Voltage detection
2. Temperature detection
3. Fan speed detection
4. Water cooling flow rate detection
5. Fan fail warning
6. Fan speed control
  * Whether the fan speed control function is supported will depend on the fan you install.
BIOS
1. 1 x 256 Mbit flash
2. Use of licensed AMI UEFI BIOS
3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
1. Support for GIGABYTE Control Center (GCC)
  * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
2. Support for Q-Flash
3. Support for Q-Flash Plus
4. Support for Smart Backup
Bundled Software
1. Norton^® Internet Security (OEM version)
2. LAN bandwidth management software
Operating System
1. Support for Windows 11 64-bit
2. Support for Windows 10 64-bit
Form Factor
1. ATX Form Factor; 30.5cm x 24.4cm

Conclusion of Gigabyte X670 GAMING X AX V2 Motherboard

The Gigabyte X670 GAMING X AX V2 is a high-end motherboard offering cutting-edge technology for gamers and professionals. With its blend of next-gen features, excellent connectivity, and premium build quality, it stands out as a top-tier choice for building or upgrading a powerful PC.
